Block Layout

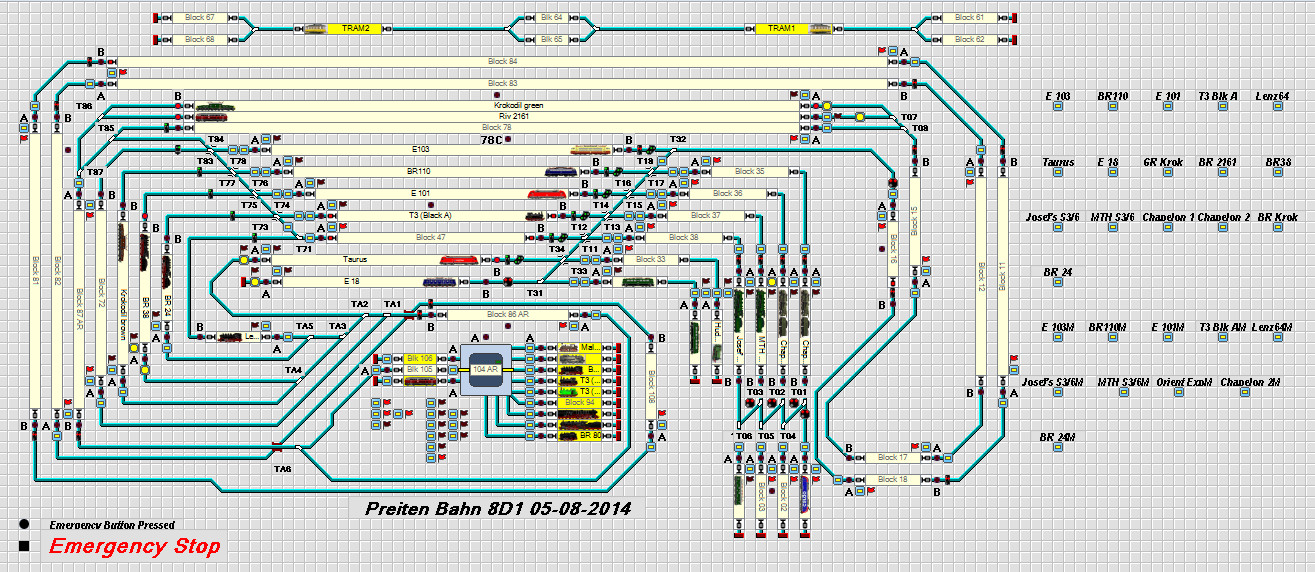

TC Switychboard



  • The above diagram shows how Preiten Bahn has been encoded in TrainController

  • There are 14 Blocks in series in the MAIN LINE

  • Since TC ensures that there is always one empty block between two occupied ones this means that a maximum of 7 trains can be running simultaneously. The practical limit is 5 to 6 trains running simultaneously.
